No-Code AI Agent Builders: A Practical Selection Guide

A no-code AI agent builder lets you combine instructions, a model, data, and actions without writing the entire orchestration layer yourself. That can make a first workflow dramatically easier to assemble. It does not make the workflow correct, secure, or maintenance-free.

The useful question is not “Which builder is best?” It is: which platform exposes enough control for this job, while keeping the build and operating burden proportionate to its value?

What counts as a no-code agent builder?

A visual automation with one text-generation step is not automatically an agent. A practical agent builder usually lets you define a goal, provide context, attach a set of tools, and let the model choose which tool or path to use. A conventional workflow follows a path the builder specified in advance.

Both patterns belong in the same system. Deterministic steps should handle validation, calculations, approvals, and writes that must be predictable. Agentic decisions are more useful when the input is unstructured or the next action depends on interpretation.

For example, parsing an invoice date should be deterministic when possible. Deciding whether an unusual invoice needs finance review may benefit from a model—but the model should route the case, not approve payment.

What current platforms actually offer

This is not a ranking. Each platform emphasizes a different operating model, and product scope changes faster than a durable selection framework.

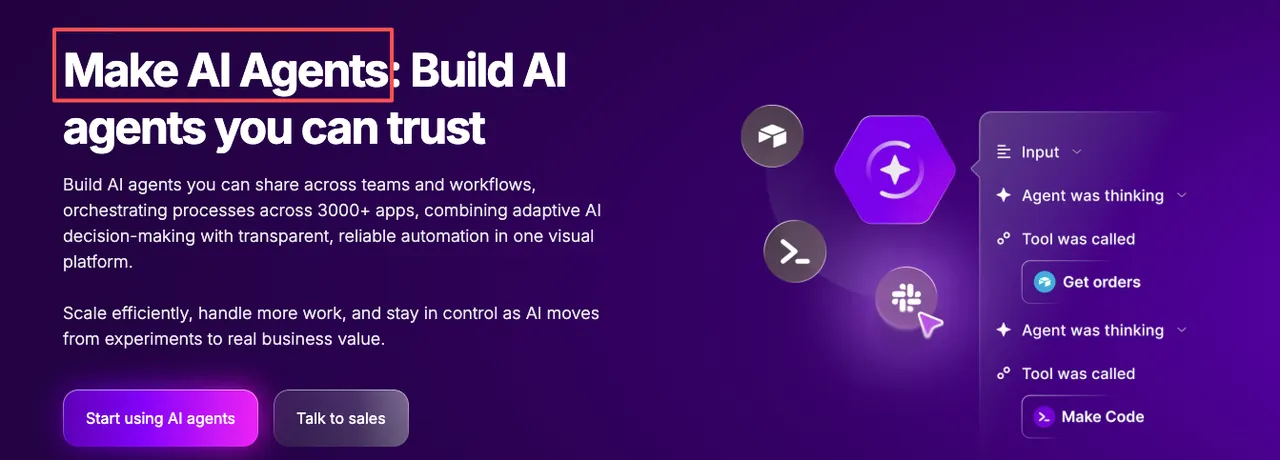

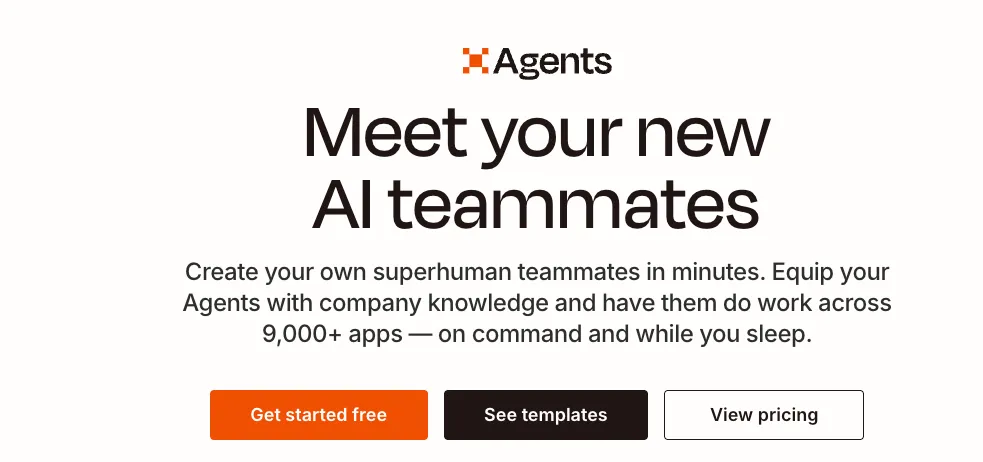

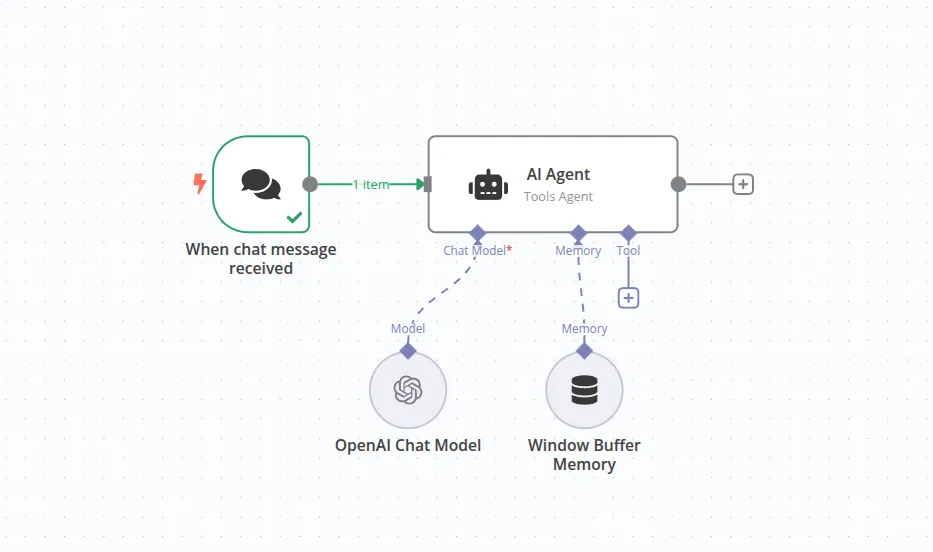

Zapier’s official Agents page emphasizes company knowledge, activity monitoring, web work, and connections across its app catalog. Make documents agents that select from attached scenarios as tools and return structured results; its newer AI Agents overview emphasizes in-canvas visibility and reuse. The n8n AI documentation combines agent nodes with ordinary workflow controls. Microsoft describes Copilot Studio as a managed platform with graphical and natural-language authoring.

Those are vendor descriptions, not proof that a particular workflow will be reliable. Verify the current plan and regional availability on the official pricing page before purchase. Prices, bundled credits, beta status, and connector entitlements are volatile and should not be copied from an undated comparison table.

Seven dimensions that matter more than feature counts

1. Tool boundaries

Can the agent call only named actions, or does it inherit broad account access? Can you restrict fields and arguments? The safest tool is narrow: “create a draft support reply” is better than “manage Gmail.”

2. Deterministic control

Look for filters, schemas, branching, retries, timeouts, idempotency controls, and approval steps. A useful builder lets deterministic logic surround the model instead of asking the model to do everything.

3. Observability

You need the original input, selected tools, arguments, results, errors, final output, cost, and timing for each run. A green “completed” badge is not enough. Make’s current product material explicitly highlights step-level decision visibility; confirm the equivalent depth in every shortlisted platform.

4. Human approval

Check whether approval can pause the run before an external side effect, whether the reviewer sees supporting evidence, and what happens when nobody responds. An approval after an email was sent is merely a notification.

5. Data and credential handling

Ask where prompts, retrieved files, logs, and credentials are stored; how long they are retained; which subprocessors receive them; and whether data is used for model training. Self-hosting can change control, but it also transfers patching, backups, monitoring, and incident response to your team.

6. Cost mechanics

Model tokens are only one line item. Count platform operations or credits, premium connectors, retrieval/storage, retries, test runs, and the labor required to investigate failures. Estimate cost per accepted outcome, not cost per run.

7. Portability

Can you export the workflow, prompts, schemas, evaluation cases, and logs in usable formats? Visual portability is rarely complete. Keeping the task contract and test set outside the platform reduces the cost of a future rebuild.

Three workflow patterns that fit no-code well

Support intake and reply drafting

Input: a new ticket plus customer and order records.

Agent decision: classify intent and retrieve the relevant policy.

Deterministic steps: validate the customer ID, redact prohibited fields, and create a draft.

Human gate: a support agent reviews evidence and sends the message.

Failure handling: missing order data routes to a queue; low-confidence classifications do not trigger customer-facing actions.

This is safer than an autonomous support agent because the model proposes and routes while a person owns communication.

Lead research and CRM enrichment

Input: a form submission or new CRM record.

Agent decision: summarize the company and map it to a defined segment using approved sources.

Deterministic steps: enforce a structured schema, deduplicate the record, and validate required fields.

Human gate: a salesperson approves high-value routing or outbound copy.

Failure handling: conflicting sources are preserved and flagged rather than silently resolved.

Meeting follow-up

Input: a transcript and attendee list.

Agent decision: identify decisions, owners, and candidate tasks.

Deterministic steps: match owners to directory IDs and check due-date formats.

Human gate: the meeting owner approves the task list before project records are created.

Failure handling: ambiguous ownership stays unassigned. The system never invents an owner to satisfy a schema.

When no-code is the wrong layer

Move toward low-code or code when the workflow needs custom authentication, complex transformations, high-volume queues, transaction guarantees, specialized evaluation, version-controlled tests, or deep integration with internal systems. Code is also preferable when the business depends on reproducing exactly why a decision was made under a particular configuration.

Move toward an Agent Workspace when the work is not a stable automation at all. Research, document production, analysis across changing files, and one-off projects often require a person to inspect intermediate artifacts and redirect the task. A workspace keeps sources, instructions, runs, and editable outputs together; a builder is better when a known event should repeatedly trigger a known operational process.

This is the same distinction explored in workflow builders vs AI workspaces. If external systems are the hard part, review AI agent connectors before choosing the canvas.

A pilot that can produce a real decision

Step 1: choose one bounded job

Select a workflow with repeatable inputs, a current manual baseline, reversible outputs, and a named reviewer. Avoid a company-wide assistant as the first test.

Step 2: write the acceptance contract

Specify required inputs, allowed tools, output schema, evidence requirements, approval points, timeout behavior, and forbidden actions. Store this outside the builder.

Step 3: create an evaluation set

Use 20–50 historical cases if available, including missing fields, duplicates, conflicting evidence, tool failure, prompt injection in source text, and requests outside policy. Remove or protect sensitive data appropriately.

Step 4: run in shadow mode

Let the agent produce recommendations without executing external writes. Compare them with the real outcome and record failure categories.

Step 5: allow one reversible write

After the shadow test, permit a low-risk action such as creating a draft or adding a tagged record. Keep sending, publishing, deletion, purchases, and permission changes behind approval.

Step 6: decide with operating metrics

Track accepted-outcome rate, false-action rate, human correction time, intervention rate, recovery success, latency, and cost per accepted outcome. Also measure how long it takes a second person to diagnose a failed run.

A compact selection matrix

The decision rule

Use no-code when the task is bounded, the tools already exist, a human can verify the output, and the economics work at expected volume. Treat it as a production option only after it survives adversarial and recovery tests—not because the demo succeeded.

Switch layers when workarounds become the architecture: prompts encode business rules that should be tests, one broad credential unlocks many actions, failures cannot be replayed, or every change requires manual repair across a visual canvas.

A no-code AI agent builder is most valuable when it shortens the path to evidence. The evidence you want is not “the agent ran.” It is “the workflow produced an acceptable outcome, stayed inside its authority, exposed its failures, and can be operated by someone other than its creator.”
